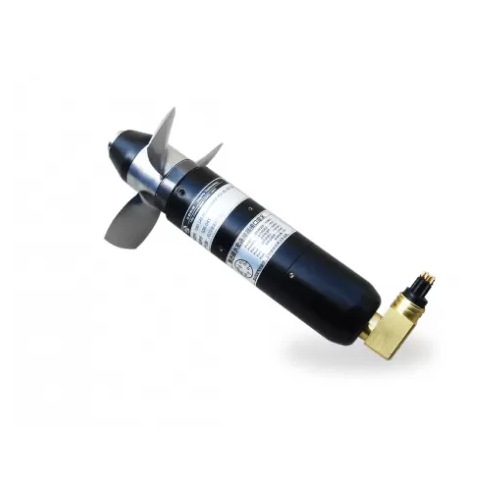

The Haoye T280 490W Compact Underwater Thruster is designed to deliver strong propulsion performance in a lightweight and compact structure. With 490W rated power and 6.7 kg forward and reverse thrust, the T280 thruster is well suited for small to mid sized AUVs, ROVs, inspection drones, and auxiliary propulsion systems for electric boats.
It combines high efficiency, corrosion resistance, and ease of integration, making it a reliable choice for both commercial and research applications.
| Rated Power | 490W |
| Forward/Reverse Thrust | 6.7kg |
| Max RPM | 2300 r/min |
| Rated Voltage | 32VDC/48VDC/65VDC/80VDC/100VDC/130VDC/150VDC/200VDC/250VDC/300VDC |
| Control Signal/Feedback Signal | Analog voltage control, CAN, Pulse feedback, RS485 |
| Direction of Rotation | Right-hand or Left-hand |
| Working Water Depth | 0-850m/0-1500m/0-3000m/0-6000m/Full sea depth Working water depth >1500m: Oil-filled seal |
| Housing | Alloy or Titanium |
| Weight | 1747g |
| Length | 236mm |
| Maximum Outer Diameter | 115mm |
Note: The weight change of oil-filled compensation products is affected by the length of the oil pipe. Please consult technical personnel for details.
As a dedicated underwater thruster manufacturer, Haoye Technology has accumulated more than 10 years of research, development, and production experience. The T280 model delivers a balance of compact size, stable performance, and integration convenience. It has been widely adopted in research, commercial, and defense projects, and is proven in diverse marine environments.
No matter if you are an AUV system integrator, a research laboratory, or a marine equipment manufacturer, we can provide thruster solutions tailored to your needs.
