A Wedge Wire Resin Trap is a critical filtration and protection device used in water treatment, power generation, chemical processing, and industrial fluid systems. It is specifically designed to capture and retain ion exchange resin beads that may escape from vessels, preventing downstream equipment damage and system contamination.
Thanks to its robust structure and precise slot openings, the wedge wire resin trap has become the preferred solution for long-term, high-reliability resin retention.

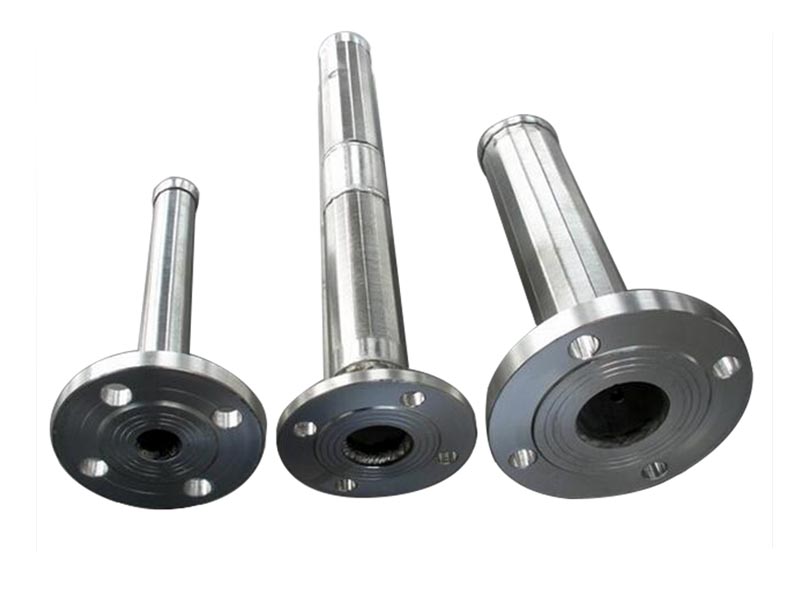

A wedge wire resin trap is a stainless-steel strainer or filter assembly constructed using V-shaped (wedge) wire profiles welded onto support rods. The unique wedge wire design creates uniform, narrow slots that allow liquid to pass through while effectively trapping resin beads, media particles, or debris.
These traps are typically installed:
Downstream of ion exchange vessels
At outlet piping of demineralizers
In condensate polishing systems
In critical process water lines
Ion exchange resin loss can lead to serious operational issues, including:
Fouling or erosion of pumps and valves
Blockage of heat exchangers
Turbine damage in power plants
Contamination of downstream processes
A wedge wire resin trap acts as a final safeguard, ensuring system integrity and reducing costly downtime.
Uniform slot openings (typically 0.2–1.0 mm) are engineered to retain even the smallest resin beads while maintaining optimal flow.
Wedge wire construction offers superior strength and pressure resistance compared to perforated or mesh filters, making it suitable for demanding industrial conditions.
The V-shaped wire profile minimizes clogging and promotes smooth flow, resulting in lower pressure loss and improved system efficiency.
Manufactured from corrosion-resistant materials such as SS304, SS316, or duplex stainless steel, wedge wire resin traps perform reliably in high-temperature and chemically aggressive environments.
Open slot design allows trapped resin to be easily backflushed or removed during maintenance, reducing labor time.
Wedge wire resin traps are widely used in:
Power Plants
Condensate polishing systems
Boiler feedwater treatment
Water Treatment Facilities
Demineralization and softening systems
Chemical & Petrochemical Plants
Resin-based separation and purification processes
Pharmaceutical & Food Industries
High-purity water systems
Industrial Utilities
Cooling water and process water protection
Although designs can be customized, standard features include:
Material: SS304 / SS316 / Duplex stainless steel
Slot Size: Customized based on resin bead diameter
Connection Type: Flanged, threaded, or welded
Flow Direction: Inside-out or outside-in
Pressure Rating: Designed for high-pressure systems
Installation Orientation: Horizontal or vertical
Custom resin traps can also be manufactured to meet ASME, DIN, or ANSI standards.
| Feature | Wedge Wire Resin Trap | Perforated Plate | Wire Mesh |
|---|---|---|---|
| Slot Accuracy | High | Medium | Low |
| Strength | Excellent | Good | Moderate |
| Clogging Resistance | High | Medium | Low |
| Service Life | Long | Medium | Short |
| Maintenance | Easy | Moderate | Difficult |
When selecting a wedge wire resin trap, consider:
Resin bead size and type
Operating pressure and temperature
Flow rate requirements
Chemical compatibility
Installation space and connection type
Applicable industry standards
A properly sized resin trap ensures maximum protection without affecting system performance.
A Wedge Wire Resin Trap is a vital component for safeguarding downstream equipment in ion exchange and water treatment systems. With its precise slot control, superior strength, low pressure drop, and long operational life, it provides a reliable and cost-effective solution for resin retention in industrial applications.
For facilities where system reliability, equipment protection, and operational efficiency matter, wedge wire resin traps are the industry-preferred choice.
