CrAl Sputtering Target for CrAlN Coatings: Composition Ratios and Performance Guide

As industries continue to demand higher-performing surface coatings, Chromium Aluminum Nitride (CrAlN) coatings have become a preferred solution for applications requiring exceptional hardness, wear resistance, oxidation resistance, and thermal stability. CrAlN coatings are widely used in cutting tools, molds, aerospace components, automotive parts, and industrial machinery operating under harsh conditions.

The quality and performance of a CrAlN coating depend heavily on the chromium aluminum sputtering target used during the Physical Vapor Deposition (PVD) process. One of the most important considerations is the chromium-to-aluminum composition ratio, as it directly influences coating properties such as hardness, oxidation resistance, friction behavior, and thermal performance.

As a trusted manufacturer of advanced sputtering materials, Advanced Targets supplies high-quality chromium aluminum sputtering targets designed to achieve consistent CrAlN coating performance across a wide range of industrial applications.

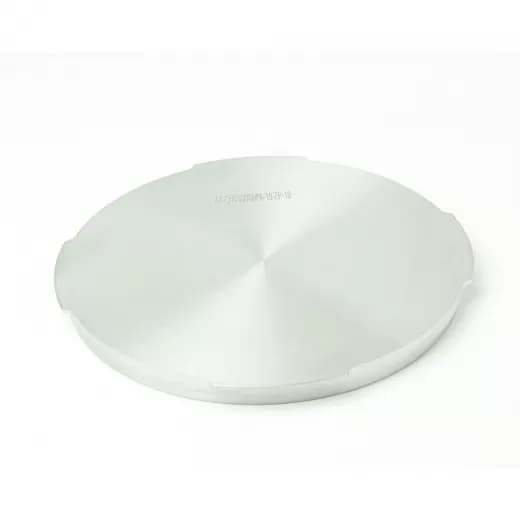

What Is a Chromium Aluminum Sputtering Target?

A chromium aluminum sputtering target is an alloy target composed primarily of chromium (Cr) and aluminum (Al). During reactive sputtering, the target is bombarded by ions in the presence of nitrogen gas, causing chromium and aluminum atoms to combine with nitrogen and form a CrAlN coating on the substrate.

The resulting coating combines the beneficial properties of both elements:

· Chromium provides hardness and corrosion resistance.

· Aluminum improves oxidation resistance and thermal stability.

· Nitrogen forms a dense ceramic structure with excellent wear resistance.

The balance between chromium and aluminum plays a crucial role in determining the final coating characteristics.

Why CrAlN Coatings Are Popular

CrAlN coatings have gained widespread adoption because they outperform many traditional nitride coatings in high-temperature environments.

Key advantages include:

· High hardness

· Excellent wear resistance

· Superior oxidation resistance

· Low friction coefficient

· Enhanced thermal stability

· Long tool life

These characteristics make CrAlN coatings ideal for applications involving high cutting speeds, elevated temperatures, and aggressive operating conditions.

Understanding Chromium-to-Aluminum Composition Ratios

Common CrAl Target Ratios

Manufacturers typically offer chromium aluminum sputtering targets in several composition ratios, including:

· Cr70Al30

· Cr60Al40

· Cr50Al50

· Cr40Al60

· Custom compositions

The percentage ratio indicates the relative atomic or weight proportion of chromium and aluminum within the target material.

Selecting the right ratio depends on the intended coating performance requirements.

How Composition Influences Coating Properties

Each element contributes unique characteristics to the final CrAlN coating.

Higher chromium content generally improves:

· Coating toughness

· Adhesion strength

· Corrosion resistance

· Impact resistance

Higher aluminum content generally improves:

· Oxidation resistance

· Thermal stability

· High-temperature performance

· Surface hardness at elevated temperatures

Finding the optimal balance is essential for maximizing coating effectiveness.

Performance of High-Chromium CrAl Targets

Cr70Al30 and Similar Ratios

Targets with higher chromium content are commonly used when toughness and adhesion are critical.

Benefits include:

· Strong substrate bonding

· Improved crack resistance

· Better resistance to mechanical impact

· Excellent corrosion protection

These coatings perform particularly well in applications involving cyclic loading and mechanical stress.

Ideal Applications

High-chromium CrAlN coatings are often selected for:

· Injection molds

· Forming tools

· Mechanical components

· Wear-resistant industrial equipment

Their durability helps extend component lifespan while maintaining coating integrity.

Performance of Balanced CrAl Ratios

Cr60Al40 and Cr50Al50

Balanced chromium-aluminum compositions are among the most popular options because they provide a strong combination of hardness, toughness, and thermal performance.

Advantages include:

· Excellent wear resistance

· Good oxidation protection

· Stable coating structure

· Versatile performance across multiple industries

These compositions often serve as a general-purpose solution for cutting tools and industrial coatings.

Ideal Applications

Balanced CrAlN coatings are commonly used on:

· End mills

· Drills

· Milling cutters

· Automotive components

· Precision tooling

They offer reliable performance across a broad range of operating conditions.

Performance of High-Aluminum CrAl Targets

Cr40Al60 and Higher Aluminum Content

Increasing aluminum content significantly enhances oxidation resistance and high-temperature stability.

When exposed to elevated temperatures, aluminum forms a dense aluminum oxide layer that protects the coating from further oxidation.

Benefits include:

· Superior thermal protection

· Reduced oxidation rates

· Extended service life at high temperatures

· Improved hot hardness

Ideal Applications

High-aluminum CrAlN coatings are frequently used in:

· Aerospace components

· High-speed cutting tools

· Turbine components

· Hot-forming equipment

· Extreme-temperature industrial systems

These applications benefit from the coating's ability to maintain performance under prolonged heat exposure.

Factors to Consider When Selecting a Chromium Aluminum Sputtering Target

Operating Temperature

The expected operating temperature is one of the most important selection criteria.

For moderate temperatures, balanced chromium-aluminum ratios often provide excellent overall performance.

For extreme temperatures, higher aluminum content generally delivers superior oxidation resistance.

Wear Conditions

Applications involving severe abrasion may benefit from compositions that maximize hardness while maintaining adequate toughness.

A balanced composition often provides the best compromise between wear resistance and coating durability.

Corrosion Exposure

Environments containing moisture, chemicals, or corrosive agents may require higher chromium content to enhance corrosion resistance.

Deposition Equipment Compatibility

Different sputtering systems may respond differently to target compositions. Engineers should ensure compatibility with:

· Power supply configurations

· Reactive sputtering parameters

· Desired deposition rates

· Film composition requirements

Why Choose Advanced Targets?

The performance of a CrAlN coating begins with the quality of the sputtering target. Advanced Targets manufactures premium chromium aluminum sputtering targets using advanced alloy production and quality control processes.

Advantages include:

· High-purity raw materials

· Uniform alloy composition

· Excellent density and microstructure

· Precision machining

· Custom composition ratios

· Consistent sputtering performance

These features help customers achieve stable deposition processes and reliable coating quality.

Conclusion

The composition ratio of a chromium aluminum sputtering target plays a critical role in determining the performance of CrAlN coatings. Higher chromium content improves toughness, adhesion, and corrosion resistance, while higher aluminum content enhances oxidation resistance and thermal stability. Balanced compositions provide a versatile solution for many industrial applications.

By carefully selecting the appropriate CrAl ratio and partnering with an experienced supplier like Advanced Targets, manufacturers can optimize coating performance, extend component lifespan, and achieve superior results in demanding high-temperature environments.
