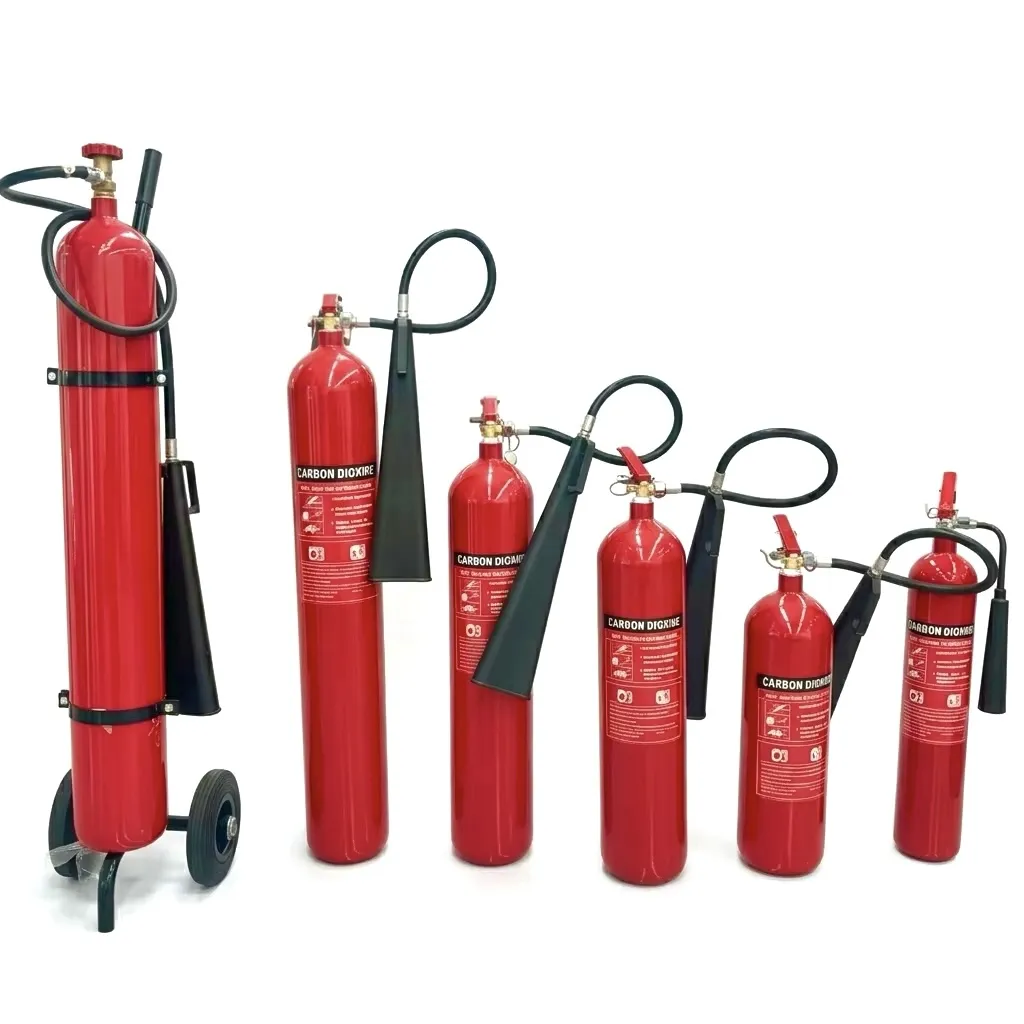

How Does a CO₂ Fire Extinguisher Work?

A CO₂ fire extinguisher releases gaseous carbon dioxide (CO₂) when activated. Carbon dioxide is highly effective against flammable liquid and electrical fires because it extinguishes flames without leaving residue.

The extinguishing effect comes from two important properties of CO₂:

• Oxygen Displacement: Fire requires oxygen, fuel, and heat to continue burning. Carbon dioxide displaces oxygen around the fire, removing one of the essential elements needed for combustion.

• Cooling Effect: CO₂ stored under pressure expands rapidly when discharged, reaching temperatures as low as -78°C. This cooling effect lowers the temperature of burning materials and helps prevent re-ignition.

Another major advantage of a CO₂ fire extinguisher is that it leaves no residue after use, making it ideal for protecting sensitive electrical equipment such as computers, servers, control panels, and laboratory instruments.

Components of a CO₂ Fire Extinguisher

A CO₂ fire extinguisher consists of several important components designed to safely store and discharge carbon dioxide:

• Container (Cylinder): High-strength steel cylinder designed to withstand internal pressures of approximately 50–60 bar.

• Valve Assembly: Controls the release of carbon dioxide and includes a safety mechanism to prevent accidental discharge.

• Operating Lever: Activates the extinguisher by opening the valve and releasing the CO₂.

• Safety Pin: Prevents unintended operation during transportation and storage.

• Discharge Horn: Expands and directs the CO₂ gas toward the fire while reducing turbulence.

• Handle Grip: Provides safe and comfortable operation during emergency use.

During operation, liquid CO₂ inside the cylinder rapidly expands into gas as it exits through the discharge horn. The resulting cloud of carbon dioxide blankets the fire, displacing oxygen and cooling the burning material simultaneously.

Advantages of CO₂ Fire Extinguishers

• No residue after discharge

• Ideal for electrical and electronic equipment

• Fast and effective suppression of Class B fires

• Environmentally friendly compared to some chemical agents

• Minimal cleanup required after use

Typical Applications

• Electrical switch rooms

• Server rooms and data centers

• Laboratories

• Industrial control panels

• Commercial kitchens (electrical equipment areas)

• Flammable liquid storage areas

HOWDY Fire Equipment Manufacturer

HOWDY specializes in manufacturing CO₂ fire extinguishers, ABC dry powder extinguishers, foam extinguishers, water extinguishers, automatic fire extinguishers, and fire extinguisher accessories. We provide OEM & ODM services, CE EN3 certification, factory-direct pricing, and global export support for distributors and fire protection companies worldwide.

FAQ

Q: What types of fires can a CO₂ fire extinguisher effectively combat?

A: A CO₂ fire extinguisher is highly effective against flammable liquid and electrical fires due to its ability to displace oxygen and rapidly cool burning materials.

Q: How do I determine the right size of CO₂ fire extinguisher for my facility?

A: Choosing the right size of CO₂ fire extinguisher depends on the potential fire hazards in your facility. It's essential to assess the type and quantity of flammable materials present and consult with a fire safety professional.

Q: Can I purchase CO₂ fire extinguishers in bulk for my business?

A: Yes, we offer bulk purchasing options for CO₂ fire extinguishers to accommodate the needs of businesses looking to ensure fire safety across multiple locations.

Q: What maintenance is required for CO₂ fire extinguishers?

A: Regular maintenance for CO₂ fire extinguishers includes yearly inspections and recharging after each use to ensure they remain effective and meet safety standards.

Q: What safety certifications should I look for when purchasing a CO₂ fire extinguisher?

A: When purchasing a CO₂ fire extinguisher, ensure it has certifications from recognized safety organizations, such as UL or FM, which indicate it complies with safety and performance standards.
