In modern tunneling projects, ensuring waterproofing and structural integrity is essential. One of the most critical components that makes this possible is the Tunnel Segment Gaskets. These specialized sealing elements are installed between precast concrete segments in segmentally lined tunnels, forming a watertight barrier that protects the tunnel from groundwater infiltration.
For industry-leading manufacturers like Hongcan, Tunnel Segment Gaskets are engineered with precision to meet demanding performance standards in complex underground environments. Understanding what these gaskets are, how they work, and where they are used is key for engineers, contractors, and project managers.
A Tunnel Segment Gasket is an elastic sealing component, typically made from high-performance rubber materials such as EPDM (Ethylene Propylene Diene Monomer). It is designed to be installed in grooves along the edges of precast tunnel lining segments.
When segments are assembled to form a tunnel ring, the gasket is compressed between adjacent segments. This compression creates a continuous seal that prevents water, soil particles, and other external elements from entering the tunnel.
High elasticity and resilience
Excellent resistance to water, chemicals, and aging
Ability to withstand high compression and deformation
Long service life, often exceeding 50 years
Hongcan designs Tunnel Segment Gaskets to meet international standards, ensuring reliability even in the most challenging conditions.
The primary working principle of Tunnel Segment Gaskets is compression sealing. When two tunnel segments are joined, the gasket between them is compressed, creating contact pressure that blocks water pathways.
This sealing mechanism depends on:
Proper gasket geometry
Adequate compression rate (usually 20%–40%)
Uniform contact pressure distribution
The compressed gasket fills any irregularities between segment surfaces, ensuring a tight seal.
In underground environments, tunnels often face significant hydrostatic pressure. Tunnel Segment Gaskets are designed to enhance sealing performance as water pressure increases.
This is achieved through:
Elastic deformation that adapts to pressure changes
Multi-lip designs that create redundant sealing lines
High-quality materials that resist extrusion and wear
Hongcan integrates advanced engineering techniques to ensure that their gaskets maintain sealing performance under extreme pressure conditions.
Tunnel segments may shift slightly due to ground settlement, thermal expansion, or operational loads. Tunnel Segment Gaskets must accommodate these movements without losing their sealing function.
Their flexibility allows them to:
Absorb small displacements
Maintain continuous contact between segments
Prevent leakage even under dynamic conditions
Tunnel Segment Gaskets are widely used in urban rail systems to ensure dry and safe underground transportation. They protect tunnels from groundwater intrusion, which could otherwise disrupt operations and damage infrastructure.
In tunnels designed to transport water, sealing is even more critical. Gaskets prevent leakage and ensure efficient flow without loss of resources.
Utility tunnels housing electrical cables, communication lines, or pipelines rely on Tunnel Segment Gaskets to maintain a dry environment and protect sensitive equipment.
Projects such as cross-sea tunnels or deep underground passages require high-performance sealing systems. Tunnel Segment Gaskets are engineered to withstand extreme water pressure and harsh environmental conditions.
Hongcan provides customized gasket solutions for these demanding applications, ensuring optimal performance across various industries.

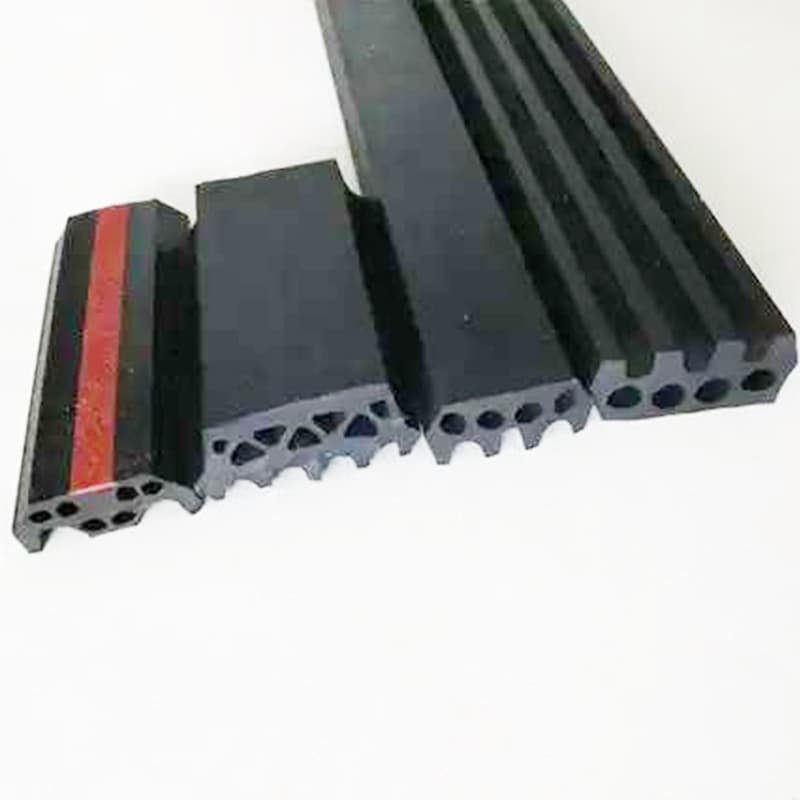

These are made from solid rubber and offer high durability and resistance to compression. They are commonly used in standard tunnel applications.
Hollow designs provide greater flexibility and lower compression force, making them suitable for projects with tighter installation tolerances.
Composite designs combine multiple materials or profiles to enhance sealing performance and adaptability. They are often used in complex or high-pressure environments.
Hongcan offers a wide range of Tunnel Segment Gaskets tailored to different project requirements.
The primary advantage is their ability to provide long-term waterproofing, protecting tunnels from water damage.
High-quality materials ensure that gaskets maintain performance over decades with minimal maintenance.
Well-designed gaskets fit precisely into segment grooves, simplifying the installation process and reducing construction time.
By preventing leaks and reducing maintenance needs, Tunnel Segment Gaskets contribute to lower lifecycle costs.
Hongcan is committed to delivering high-performance Tunnel Segment Gaskets through:
Advanced material formulations
Precision manufacturing processes
Rigorous quality control and testing
Continuous research and development
Their products are designed to meet the evolving needs of modern tunneling projects, ensuring safety and reliability.
Tunnel Segment Gaskets are essential components in segmentally lined tunnels, providing effective sealing, durability, and adaptability. By understanding what they are, how they work, and where they are used, engineers can make informed decisions to ensure successful tunnel construction and operation.
With expertise and innovation, Hongcan continues to lead in the development of high-quality Tunnel Segment Gaskets, supporting infrastructure projects around the world.
